Deltapilot FMB50 Hydrostatic Level Sensor with Ceramic Membrane 0.1% Accuracy and 400m Measurement Distance

Brand Name : Endress Hauser

Model Number : PMC51-JFP6/173

Certification : Rohs

Place of Origin : DE

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 500pcs/month

Delivery Time : On request

Packaging Details : Original packing

Measuring cell : 100 mbar...40 bar

Max. measurement distance : 400 m (1312 ft) H2O

Material process membrane : Ceramic

Accuracy : Standard 0.1% Platinum 0.075%

Pressure measuring range : 100 mbar...40 bar (1.5psi...600psi)

Contact Now

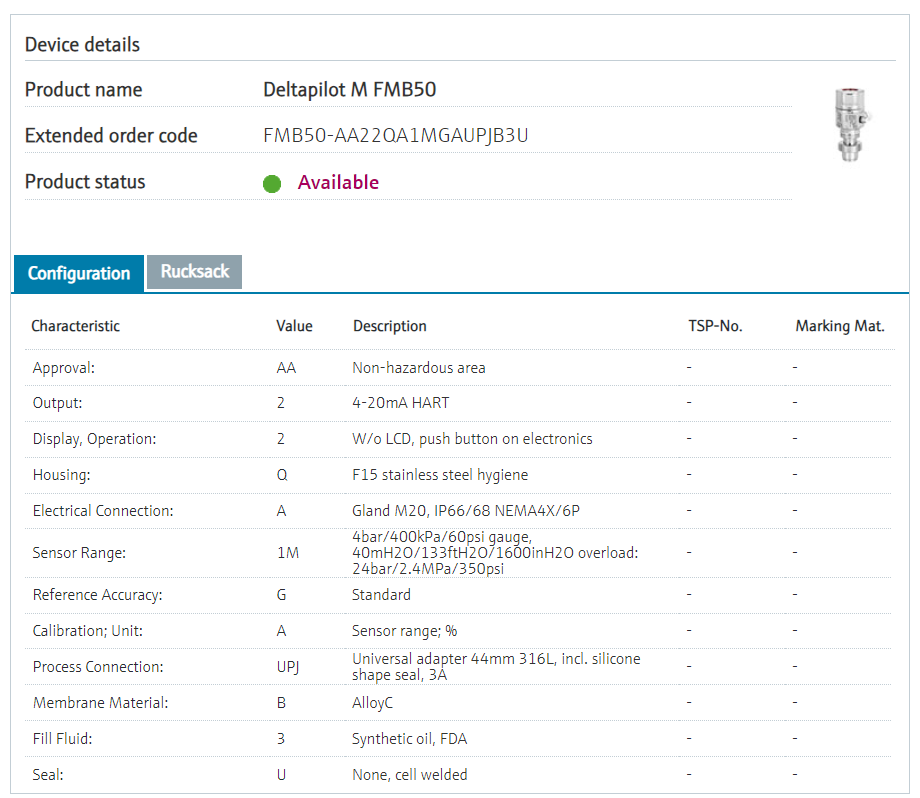

Deltapilot M FMB50 Hydrostatic Level Transmitter
Compact pressure sensor with Contite measuring cell for hydrostatic level measurement in liquid and paste-like media
Deltapilot FMB50 Hydrostatic Level Sensor with Ceramic Membrane 0.1% Accuracy and 400m Measurement Distance
Product Overview
The compact Deltapilot FMB50 transmitter with condensate-resistant Contite measuring cell is designed for level measurement in open or closed containers, unaffected by foam formation. Suitable for SIL2 safety systems.
Key Features
  • Hermetically sealed Contite measuring cell with condensate-resistance
  • High reference accuracy: ±0.2%, optionally ±0.1%
  • Minimal temperature effects
  • Modular concept for easy replacement of display or electronics
  • Seamless system integration (HART/PA/FF)
  • Easy menu-guided commissioning via local display
Technical Specifications
ParameterSpecification
Measuring PrincipleHydrostatic pressure
Supply Voltage4...20 mA HART: 10.5...45 VDC (Non Ex)
Ex ia: 10.5...30 VDC
PROFIBUS PA: 9...32 VDC (Non Ex)
FOUNDATION Fieldbus: 9...32 VDC (Non Ex)
Reference AccuracyStandard 0.2%
Optional 0.1%
Long Term Stability0.05% of URL/year
Process Temperature-10°C...100°C (14°F...212°F)
Ambient Temperature-40°C...85°C (-40°F...185°F)
Measuring Cell100 mbar...10 bar (1.5 psi...150 psi)
Smallest Calibratable Span10 mbar (1.45 psi)
Vacuum Resistance0 mbar abs.
Max. Turn Down100:1
Max. Overpressure Limit40 bar (600 psi)
Communication4...20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus, IO-Link
Process Connections & Materials
ComponentSpecification
Process ConnectionThread: G1 1/2, MNPT1 1/2
Flange: DN40...DN100, ASME 1 1/2"...4", JIS 10K
Hygienic ConnectionsTri-Clamp, DIN11851, DIN11864-1, NEUMO, Varivent N, SMS, DRD
Process Membrane Material316L, AlloyC, Gold-Rhodium
Gasket MaterialNone, measuring cell welded
Fill FluidInert oil, Synthetic oil
Housing Material316L, Die-cast aluminum
Certifications & Approvals
  • Certificates: ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, UK Ex
  • Safety: Overfill protection WHG, SIL
  • Design: EN10204-3.1, NACE MR0103
  • Hygienic: 3A, EHEDG, CoC ASME-BPE
  • Marine: GL/ABS/LR/BV/DNV
  • Drinking Water: KTW/NSF/ACS
Applications
Ideal for process and hygienic applications in various industries including chemical, pharmaceutical, food & beverage, and water treatment for level measurement in liquids and paste-like media.
